CF50 Multifunctional Single Head Coffee Capsule Filling and Sealing Machine

CF50 Multifunctional Single Head Coffee Capsule Filling and Sealing Machine is a versatile piece of equipment used for filling and sealing coffee capsules. It is designed with a single head, allowing for efficient and precise filling of coffee grounds into the capsules. This coffee capsule packaging machine also has a sealing function, ensuring that the capsules are securely closed to maintain the freshness and aroma of the coffee.

Get A Quote

Products

Specifications of the Cf50 Multifunction Single Head Coffee Capsule Filling and Sealing Machine

Model	CF50
Productivity	2400pills/h
Cup size	Out diameter: 37-54 mm
Cup size	Height: 28-50 mm
Sealing film	37-54 mm
Power supply	Single phase 220V
Main motor power	0.75KW
Total power	5KW
Air pressure	0.6-0.8MPA
Air consumption	0.4(M³/H)
Dimension	1500x1100x1900 mm
Machine weight	1500 KG

The Features of the CF50 Multifunction Single Head Coffee Capsule Filling and Sealing Machine

The highest production speed of the machine can reach 3000 cups per hour, with an error of no more than 0.15g for filling volume.

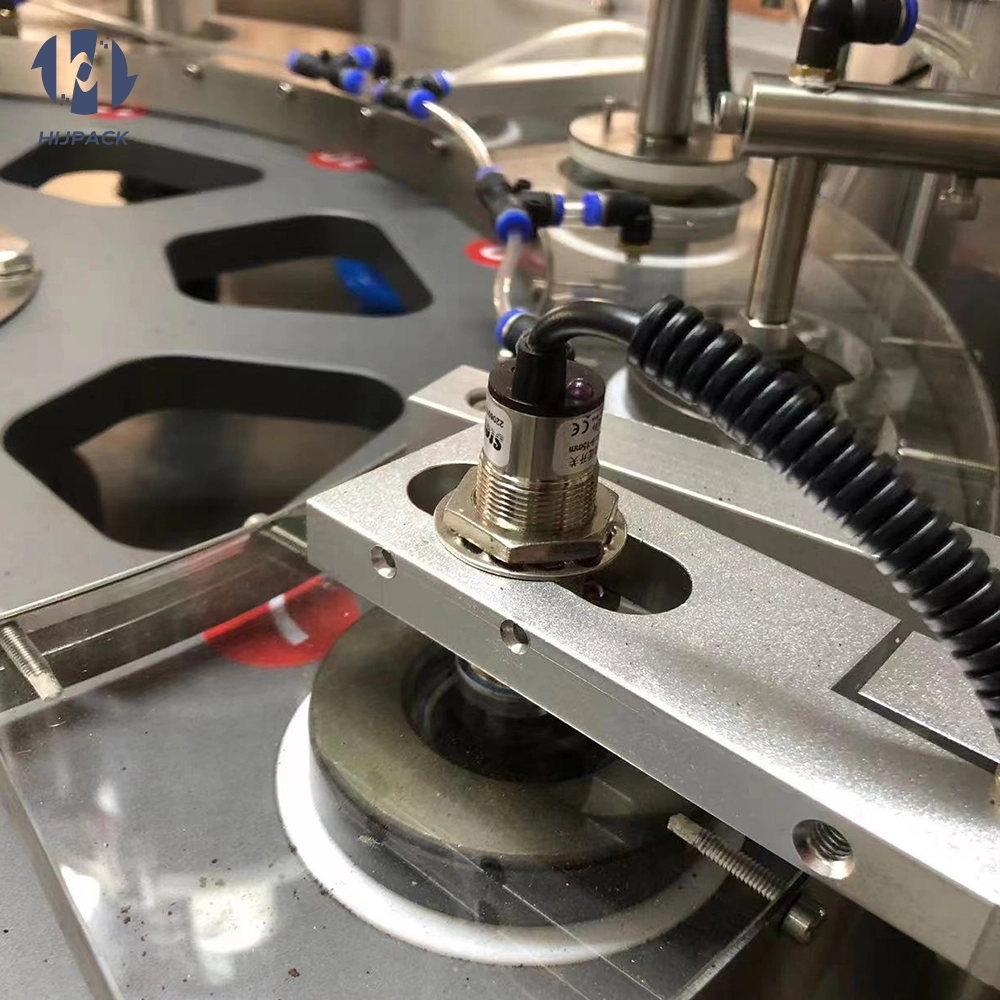

Automatic cup dropping, cup photoelectric automatic detection, filling, sealing, and finished product ejection are achieved through the use of cylinders and linkage design, ensuring that all actions are synchronized and completed simultaneously.
The machine is aesthetically pleasing and easy to clean. It has an attractive design with a polished stainless steel finish, a compact structure, and a tabletop that is easy to clean without any dead corners. It fully complies with the GMP requirements for food production.
The moving parts of the robotic arm are equipped with fully enclosed ball bearings, and the sliding shafts on the machine table use linear bearings and a self-lubricating system to prevent contamination.
The motion system is equipped with a safety clutch, which effectively provides overload protection in case of malfunctions.
