It is suitable for weighing and filling various granular, powdery, liquid and other materials. Such as coffee powder, milk powder, soy milk powder, tea, instant powder, yogurt and other food materials.
| MACHINE PARTS | All the product contact parts are stainless steel AISI 304. The machine is constructed of stainless steel, anodized aluminum and plastic |
| CERTIFICATION | CE, FDA, CSA, ISO 9001 |
| PRODUCT | Granule Powder |
| SEALING STYLE | Precut aluminum foil/Roll foil |
| SYSTEM THROUGHPUT | 12000capsules/hour |
| FILLING WEIGHT | 2-18g |
| DOSAGE TOLERANCE | ±0.1g |
| POWER | 380V 60HZ 1.5KW |
| AIR SUPPLY PRESSURE | 0.6Mpa-0.8Mpa |
| AIR CONSUMPTION | 0.8mˆ3/min |
| WEIGHT | 1900Kg |
| DIMENSION | 3500X950X1800mm |
It is suitable for weighing and filling various granular, powdery, liquid and other materials. Such as coffee powder, milk powder, soy milk powder, tea, instant powder, yogurt and other food materials.

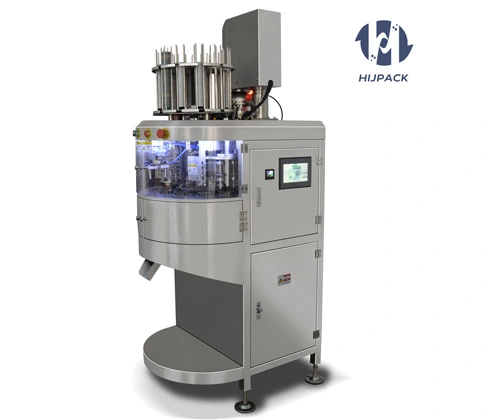

This machine is a new model recently developed by our company. It is a rotating machine that occupies a small area, is fast and stable, and can fill 7,200 capsules per hour. It can fill a variety of cup types, as long as the machine mold is changed. It can be done in 30 minutes. Servo controlled spiral filling, filling accuracy can reach ±0.2g. It has a nitrogen filling function, so that the residual oxygen in the product can reach 5%, which can extend the shelf life of coffee. The whole machine system is mainly based on Schneider and developed with Internet of Things technology. You can use a computer/mobile phone to monitor or operate the machine online.
